DIRECT TO GARMENT PRINTERS

Leading the DTG Evolution

Crafted by visionaries of the DTG realm, ColDesi’s G4 represents an epoch of technological advancement. Birthed by ColDesi’s Belquette Technologies engineers, it forges a new path in DTG printing.

Print Queue: The Future of Workflow

Moving beyond traditional methods, the Print Queue offers streamlined operations. With the G4’s intuitive control panel, tasks once considered challenging transform into fluid steps, marking a shift in printing dynamics.

Unprecedented Print Head Efficiency

A pioneering feature, the G4’s print head is equipped with a damper reservoir and dual sensors. These innovations measure ink temperature and volume, optimizing the waveform for each color and head. Alongside an automated de-bubbling system, it guarantees impeccable ink flow and swift drying times, setting the G4 apart.

G4 DTG Key Specifications

Maximum Print Size - 16 x 20 inches | 460 x 508 mm
Print Head - 4x Ricoh Piezo (CMYK)
Nozzle Dedicated to Color - 192 nozzles per color
Nozzle Dedicated to White - 768 nozzles (192 x 4)
Maximum Print Resolution Color - 1200 x 1200 (16 passes)

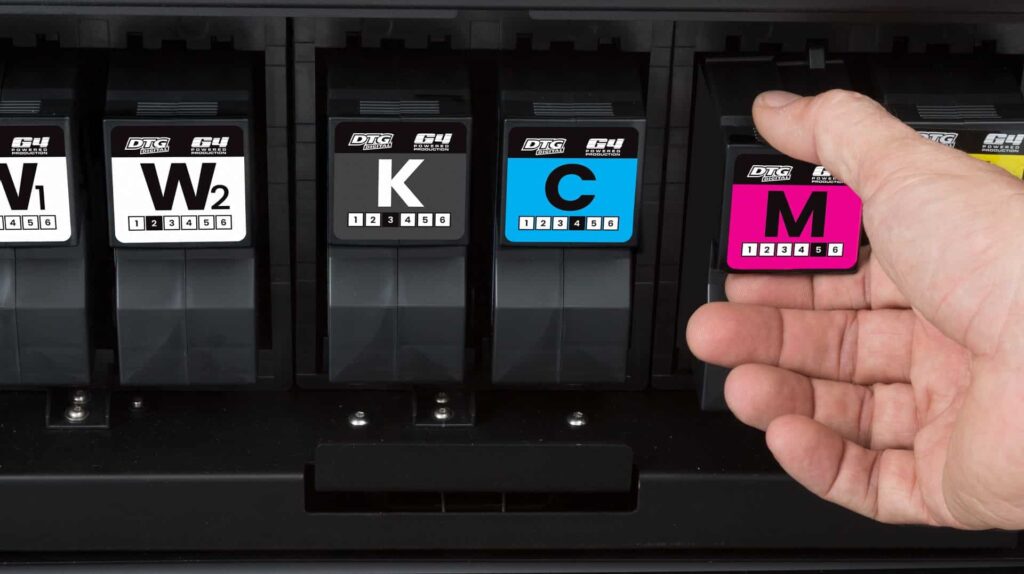

Ink Cartridge - 200ml Cartridge with encrypted chip
Ink Cartridge Configuration - 6 Cartridges (CMYKWW)
Maximum Drop Size - Up to 37 pl
Print Speed (actual printing times for 8x10 inch design)
Fast - 28 sec (CMYK)/55 sec (CMYKW)
Normal - 53 sec (CMYK)/102 sec (CMYKW)
Quality - 79 sec (CMYK)/165 sec (CMYKW)
User Interface 7" Touch Resistive Display (Android ICS 4.03)
Table Height Adjustment Automatic
Standard Connectivity 10/100 Base T Ethernet
Strom AC 100V or AC 200V
Size and Weight 53.5 x 38.5 x 18.3 inches | 1359 x 978 x 456 mm
216 lbs | 98 kg

Revolution in T-Shirt Loading

The innovative Vacuum platen changes the landscape of garment placement. By merely draping the garment over, a robust vacuum ensures a flawless position in mere seconds.

Balancing Speed and Precision

From a brisk 28-second print to an intricate 131-second procedure, the G4 gracefully merges production pace with print excellence.

A New Era of DTG Inks

Backed by over a century of Kodak© expertise, ColDesi introduces superior inks for the G4. This union of innovation and chemistry accentuates the G4’s supremacy in the DTG domain, making a mark with every print.

What's Next with ColDesi DTG?

In the dynamic world of DTG printing, the quest for perfection never ceases. At ColDesi, innovation is more than just a buzzword—it's our driving force. Our dedicated team of engineers and visionaries are relentlessly exploring the frontier of printing technologies. With an unwavering commitment to excellence, we're always on the brink of unveiling cutting-edge solutions that will redefine DTG. As pioneers of the industry, we invite all to anticipate the future with ColDesi DTG, where tomorrow's breakthroughs are being crafted today.
